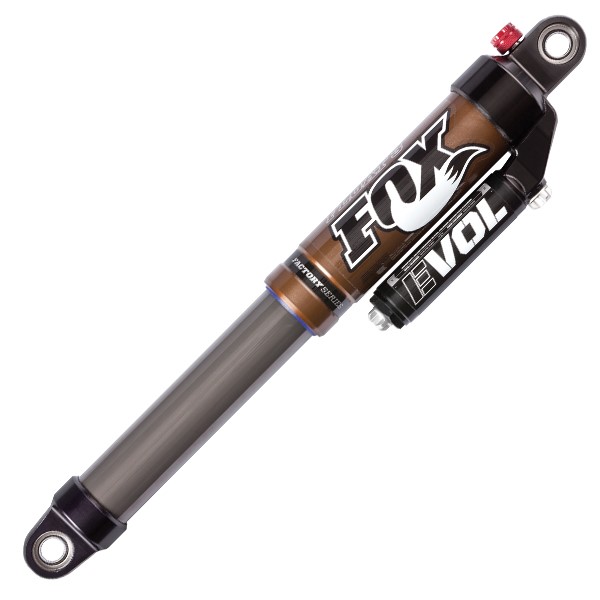

Fox Float 3 Evol R - Honda TRX450R 2004-2014 - Kashima Coating - Stock A-Arm


Part Number
30-83019301
OEM Number: 830-19-301
Color / Material
Kashima Gold
Canadian Retail Price
$1,533.00 cdn 4

Availability information

The stock availability is a live feed system. If item is not in stock, we will order it as fast as possible for you.

Some items are Special Order Only. We don't carry them in stock. Call us to place an order.

Check Stock

Product Information



Lenght: 16.5" Center-to-Center
Stroke: 4.7"

All new for 2014, offering an infinite range of adjustability in an ultra-lightweight package, our Factory Series FLOAT®3 EVOL R air shock is the perfect ultra-lightweight and hassle-free suspension choice for your sport or recreational ATV. The FLOAT 3 Evol R is custom-valved specifically for each vehicle application, and its infinitely adjustable dual rate air spring and externally adjustable rebound allows the rider to quickly and easily tune for any terrain condition or personal preference. Inside its hard-anodized 6061-T6 aluminum body, the Internal Floating Piston (IFP) separates the high-pressure nitrogen gas from the damping oil to ensure optimum, fade-free performance. Replacing your stock shocks with a set of FLOAT 3 EVOL R shocks on your ATV not only dramatically increases its ride performance but also leaves about 6 pounds in the garage. Lighter is faster.

Position: front

ATV Type: Recreational

Spring: Air

Weight: 3.2 lbs @ 16.6"

Adjustments:
Infinitely adjustable air spring

  • MAIN Air Chamber (ride height)
  • EVOL Air Chamber (bottom-out/roll control)
  • Wide-range rebound adjustment

Features

  • Genuine Kashima Coat
  • Samurai Sealing System (SSS)
  • EVOL Air Technology
  • Aerospace-grade PTFE-lined spherical bearings
  • High-flow velocity-sensitive damping
  • Chrome silicone negative spring
  • Fully rebuildable and revalveable
  • Lose up to 6 pounds on your ATV
    (when replacing coil spring shocks)
