Bikeman Performance polaris 800cfi durability kit

Bikeman Polaris 800CFI Durability Kit

  • Durability kit fits all year 2008-Up 800 CFI & HO motors including the AXYS

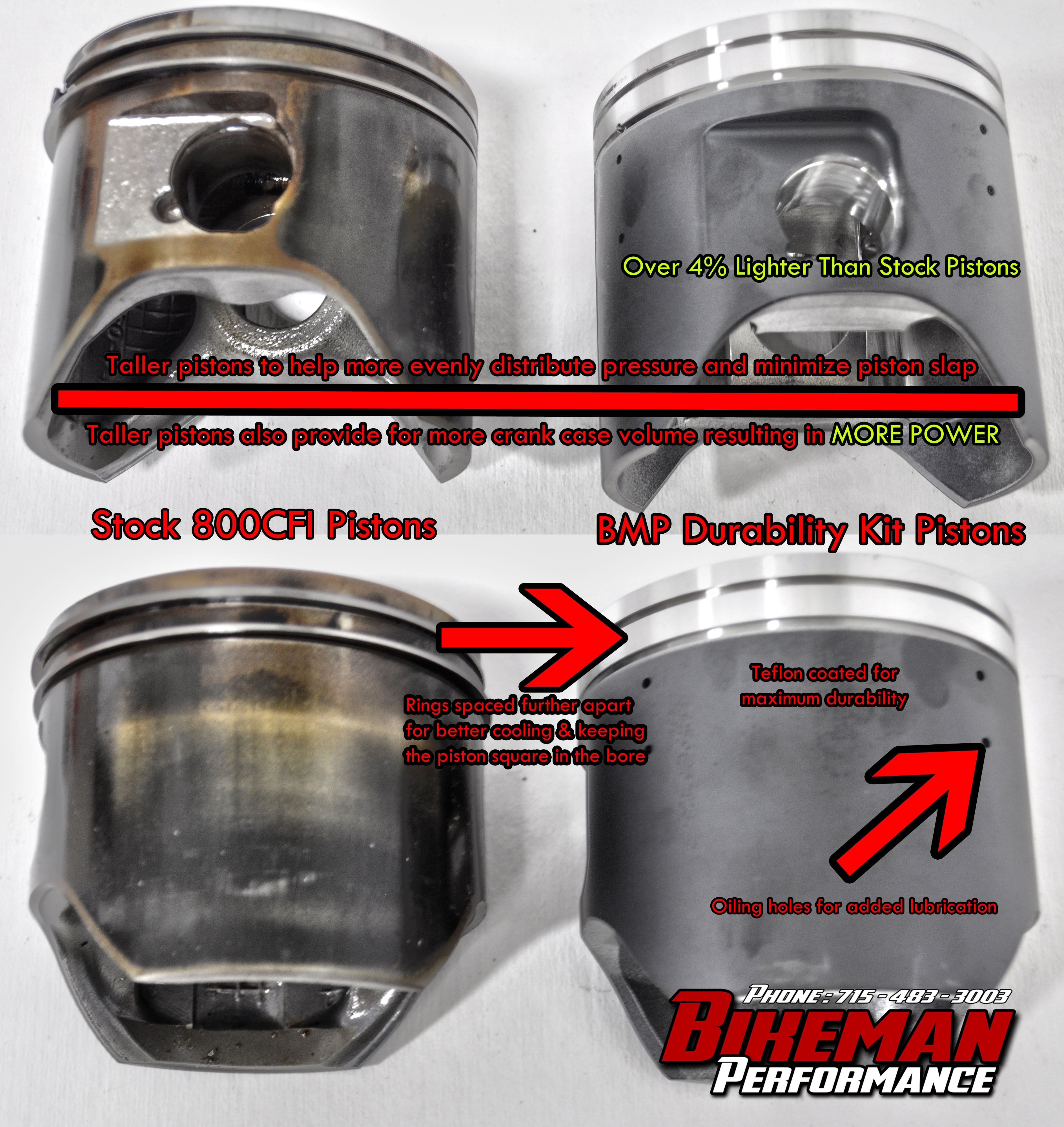

  • Custom deisgned taller pistons have less piston slap
  • Rings have been spaced apart for better cooling
  • Pistons have 20 thou wrist pin offset to take load off the intake side
  • Forged pistons are more durable and collapse less than factory pistons
  • Lubrication holes in the skirt of the piston designed to lengthen piston skirt life
  • Teflon coated pistons

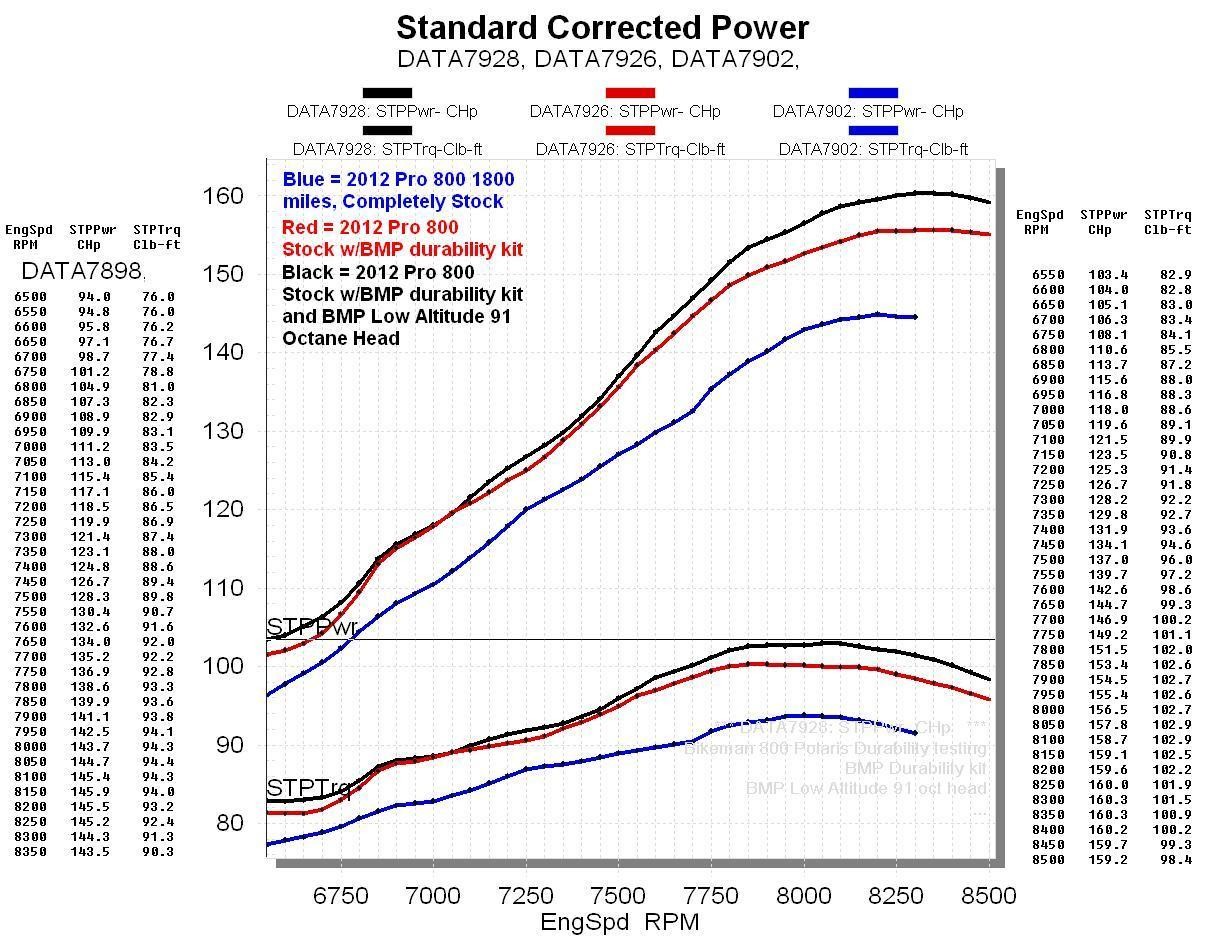

  • Gains 6-7 horsepower and even more on those down compression
  • A must have for motors with over 1500 miles on stock pistons
  • Smoother running motor
  • No EFI controller required

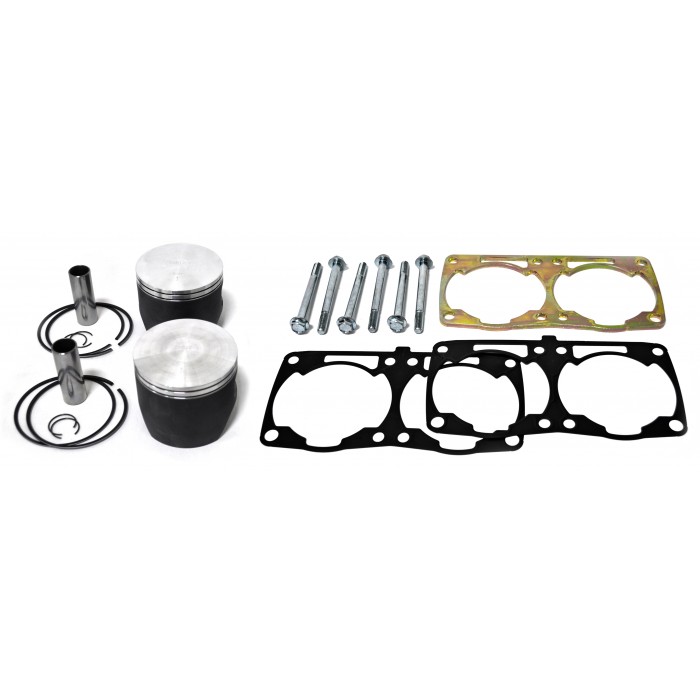

  • Includes pistons, rings, circlips, wristpins, cylinder bolts, cylinder spacer, longer alignment pins, & 2 base gaskets.





Durability kit using taller pistons for your 800 CFI! Great performance and reliability gains with this kit! Same kit fits all models 2008-Up. The kit comes with two new Teflon coated pistons, rings, wristpins, circlips, longer cylinder bolts, machined spacer, longer dowel pins, and two base gaskets. No fuel controller needed. Want even more? Add our billet head kit for 160 hp and still no fuel controller needed on Pro-R models (Ethanol setting is recommended).

For Polaris 800 motors, 2008-2014. The relatively short rods and pistons have been the cause of the short life of the stock pistons and rings. Most machines will lose 20-30 lbs of compression after just 1500 miles of riding which causes a loss in performance. How many miles do you have on your sled? If it has 1500 miles or more, you're in need of this kit! The key to this kit are the taller pistons we developed which allow less piston rock. This reduces the stress on the piston and rings dramatically. We also extended piston life by slightly changing the ring location, adding lubrication holes on all four corners of the piston, and Teflon coated the skirts. The Durability kit includes a cylinder spacer that raises the cylinder the same amount as the piston is taller so port timing isn't changed. The added crankcase volume even produces 6 more horsepower so your engine life is extended dramatically while gaining you power at the same time. The kit comes with two new Teflon coated pistons, rings, wristpins, circlips, longer cylinder bolts, our machined spacer, longer dowel pins, and two base gaskets. If you plan to keep your Polaris, you better get your Durability Kit shipped out today! 6 hp gain with no EFI Controller!

How does it compare to the competitors? Many people ask how our durability kits compare to everyone else's. Truthfully some other companies kits do work; however none of them have engineered all the features that we offer.

1. Wossner Pistons - Unmatched forged piston quality compared to any other manufacturer. Other companies use Wossner but they are not the same design as ours.
2. We engineered our Pistons .250" taller than stock to reduce fatigue on piston skirts due to rod angles. Some people install longer rods but doing so decreases power and costs much more.
3. We designed Gas Ports into our piston These are small ports that allow oil film from underside of piston through the piston to help lubricate high load areas.
4. We offset our wrist pin .020" towards the exhaust side to reduce skirt loading during power stroke.
5. We engineered a wider ringland between the rings to reduce ring temperature.
6. The addition of the .250 inch spacer under cylinder corrects cylinder volume for the 800 cfi resulting in more efficient power.
7. The addition of the spacer under cylinder also lifts cylinder intake shirts up out of the reed window reducing intake restriction and resulting in more power during high airflow demand at high RPM.


polaris durability kit

Durability kit polaris bikeman



Application Listing

Click on application in the list to view more details on the part. All Prices are in Canadien Dollars

Part No. Supplier No. Description
153-800100 Engine Durability Kit - Polaris 800CFI Models 2008-2014 $770.00(4) Check Stock
153-800101 Wossner Forged Standard Piston Kit - Polaris 800 CFI 2008-Up $420.00(4) Check Stock
153-800110 Engine Durability Replacement Pistons Tall Boy - Polaris 800 CFI 2008-Up (Each) $280.00(4) Check Stock
