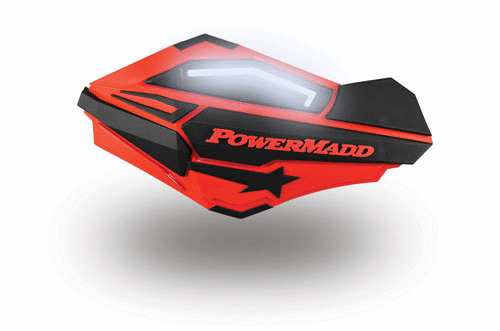

Powermadd Sentinel LED Light Kit

The newest accessory for the Sentinel line of handguards. The LED Light Kits increase your visibility and improves your peripheral lighting. Simply snap out your vent covers and snap in the LED light kit. They can be wired directly to your battery by using the included 12 volt waterproof switch or they can be tapped into any other 12 volt power source.

These bright LED lights (200 lumens each) provide additional visibility and safety - allowing you to see more and be seen easier. The LED lights offer improved visibility while only consuming 4 watts each. These are a great addition to any ATV, motorcycle or snowmobile. Requires: Sentinel Handguards and mount kit. Sold separately.
Note: If using the LED Light Kit with the Armor (34477), you will need to contact PowerMadd for additional screws. There is no charge for the additional hardware.

Kit includes:
2ea. - COB LED light
2ea. - Vent Covers
1ea. - 48" Switch wire
1ea. - Electronic control wire
1ea. - 12v waterproof switch
2ea. - 12v ring terminals
2ea. - 3M T-Taps
2ea. - .25" Male spade terminal
4ea. - Self tapping screws
4ea. - Flat washers
6ea. - Zip ties

Detailed Specifications:
Work Voltage  -  12 v (10.5 V-14.5 V)
Work Current  -  170 mA( Max 300 mA)
Power Wattage  -  4 W (Max)
LEDs  -  0.1W 40 pcs/piece
Luminous Flux  -  200 LM
Color Temperature  -  6500K White
Material  -  Aluminum, Nylon
LEDs Life-span  -  30,000 hours
Waterproof  -  IP 67
Working Temperature  -  -40 C to + 80 C
Wire  -  UL 20 AWG
Weight  -  285 g


34490 Sentinel Led Light Kit34490 Sentinel Led light ATV Light Kit HandguardsPowermadd sentinel led light kit snowmobile

Application Listing

Click on application in the list to view more details on the part. All Prices are in Canadien Dollars

Part No. Supplier No. Description
321-34490 Sentinel LED Light Kit - 200Lm - Black Cover $84.95(7) Check Stock
321-34495 Sentinel Vent Covers For LED Light Kit - White $13.95(7) Check Stock
